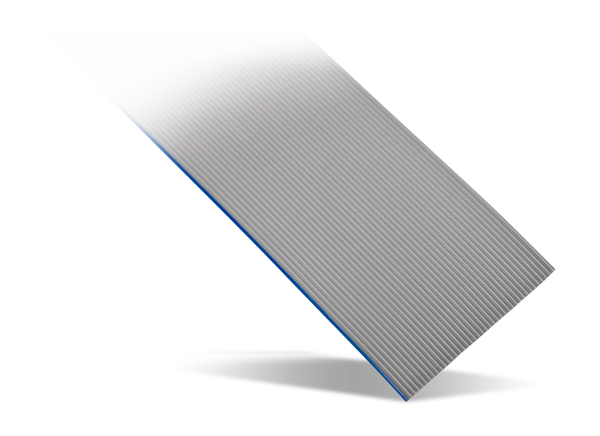

3M Halogen-Free Flat Cables have Low Smoke Zero Halogen (LSZH) polyolefin insulation, resulting in low smoke (IEC 61034-2:2005), low toxicity of combustion gases (NFX70-100-2:2006), and reduced soot and corrosion damage to nearby equipment. These stranded cables from 3M also have a broad operating temperature range of -40°C to +105°C, 28AWG wire on .050 inch centers (1mm centers for HF625 Series) for mass termination to a broad line of IDC connectors, and zippable primary cable for branching and discrete terminations.
Low smoke zero halogen (LSZH) insulation
Broad operating temperature range from -40°C to +105°C
Continuous split/bond repeat allows for mass termination of IDC connectors
Primary cable is zippable for branching or discrete terminations
3M HF100 Halogen-Free Flat Cables
Features 28AWG stranded ribbon cables with a twist and flat conductor repeat pattern.
