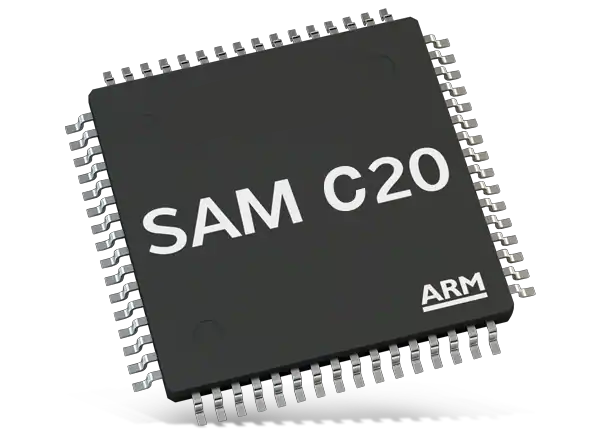

Microchip Technology 32-Bit SAM C Microcontrollers

Microchip Technology 32-Bit SAM C Microcontrollers are optimized for industrial automation, appliances, and other 5V applications using the 32-bit Arm® Cortex®-M0+ processor. The SAM C MCUs range from 32- to 64-pins with up to 256KB Flash and 32KB of SRAM. These devices operate at a maximum frequency of 48MHz and reach 2.46 CoreMark®/MHz. The SAM C devices are designed for simple and intuitive migration with identical peripheral modules, hex compatible code, identical linear address map, and pin-compatible migration paths between all devices in the product series.

All devices include intelligent and flexible peripherals, Microchip Event System for inter-peripheral signaling, and support for capacitive touch buttons, sliders, and wheel user interfaces. Microchip Technology SAM C MCUs are pin-compatible to the SAM D and SAM C family of general-purpose microcontrollers.


  • Arm Cortex-M0+ based MCU running up to 48MHz
  • Up to 256KB embedded flash
  • Up to 32KB SRAM main memory
  • Up to 8KB independent self-programmable flash for EEPROM emulation
  • 2.7V to 5.5V operating voltage
  • 2x Controller Area Network (CAN) modules (SAM C21)
  • 6-channel DMA controller (SAM C20)
  • 12-channel DMA controller (SAM C21)
  • Microchip® QTouch® peripheral touch controller
    • Hardware support for buttons, sliders, wheels, and proximity
    • Mutual- and self-capacitive touch support
  • Integrated Serial Communication Modules (SERCOM)
    • I2C
    • SPI
    • RS485
    • LIN
  • Package options
    • 64-pin TQFP, QFN
    • 56-pin WLCSP
    • 48-pin TQFP, QFN
    • 32-pin TQFP, QFN


  • Building automation
    • Comfort and control
    • Fire and security
  • Home appliances
  • Home entertainment
  • Home automation
  • PC peripherals
  • Industrial automation
    • Human-machine interface
    • Industrial communications
    • Instruments
    • Sensors
  • Mobile electronics

Block Diagram

Block Diagram - Microchip Technology 32-Bit SAM C Microcontrollers
Publicado: 2016-12-22 | Actualizado: 2022-03-11
