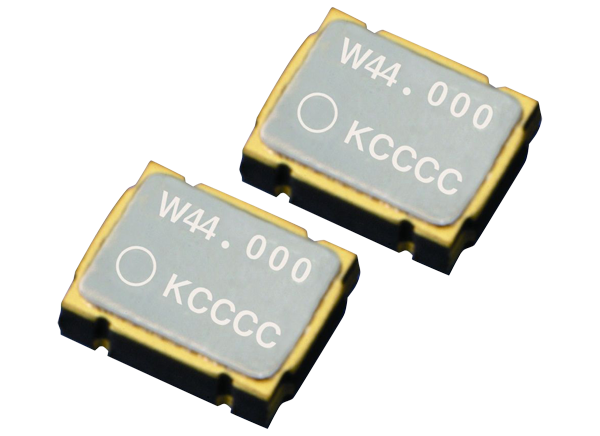

KYOCERA AVX KC Surface-Mount Clock Oscillators are contained in a highly reliable, seam welded miniature ceramic package with a supply voltage of up to 3.3VCC. The KC oscillators are available in several series that offer such features as low current consumption, CMOS output, high reliability, wide operating voltage range, and a high output frequency range of 1.5MHz to 125MHz. KYOCERA AVX KC Surface-Mount Clock Oscillators are automotive grade, lead free, and RoHS compliant.
Miniature ceramic package
Highly reliable with seam welding
Supply voltage of 3.3VCC
1.5MHz to 125MHz output frequency range
-40°C to +105°C operating
-55°C to +125°C storage
10µA stand-by current
5ms enable time
10ms start-up time
KYOCERA AVX K Series Clock Oscillators
Features a common sized head unit and changing base substrate, supporting 2016 to 7050 case sizes.
