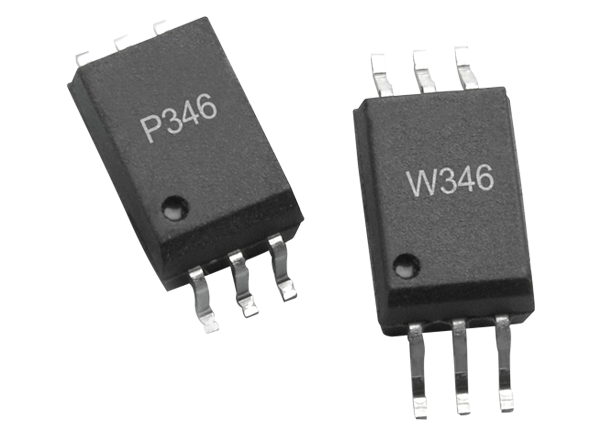

Broadcom ACPL-x345 SiC MOSFET Gate Drive Optocouplers

Broadcom ACPL-x345 SiC MOSFET Gate Drive Optocouplers each contain an AlGaAs LED, which is optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power and SiC (Silicon Carbide) MOSFETs used in inverter or AC-DC/DC-DC converter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The voltage and high peak output current supplied by this optocoupler make it ideally suited for direct driving MOSFETs at high frequency for high efficiency conversion. The ACPL-P345 and ACPL-W345 have the highest insulation voltage of V_IORM = 891Vpeak and V_IORM = 1140Vpeak respectively in the IEC/ EN/DIN EN 60747-5-5.

Features

1.0A maximum peak output current
0.8A minimum peak output current
Rail-to-rail output voltage
120ns maximum propagation delay
50ns maximum propagation delay difference
LED current input with hysteresis
50kV/μs minimum Common Mode Rejection (CMR) at V_CM = 1500V
I_CC = 4.0mA maximum supply current

Under Voltage Lock-Out protection (UVLO) with hysteresis
Wide operating VCC Range: 10V to 20V
-40°C to 105°C Industrial temperature range
Safety approval:
- UL Recognized 3750/5000V_RMS for 1 min
- CSA
- IEC/EN/DIN EN 60747-5-5 V_IORM = 891/1140 Vpeak
