B&K Precision DAS220-BAT Portable 10-Channel Data Recorder offers four alarm outputs, a resistance to 10kΩ, and a measure voltage to ±100V. The DAS220-BAT features a 10" touchscreen TFT display, 10 built-in universal analog inputs, and 32GB of internal solid-state memory. This data recorder measures and records parameters commonly found in process applications, including temperature, current, frequency, and pulse. B&K Precision DAS220-BAT Portable 10-Channel Data Recorder operates in a 0°C to +40°C operating temperature range and has dimensions of 66mm x 298mm x 176mm.

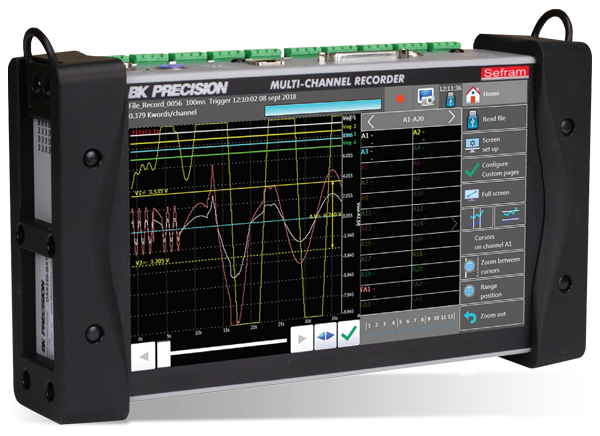

Wide 10" touchscreen TFT display

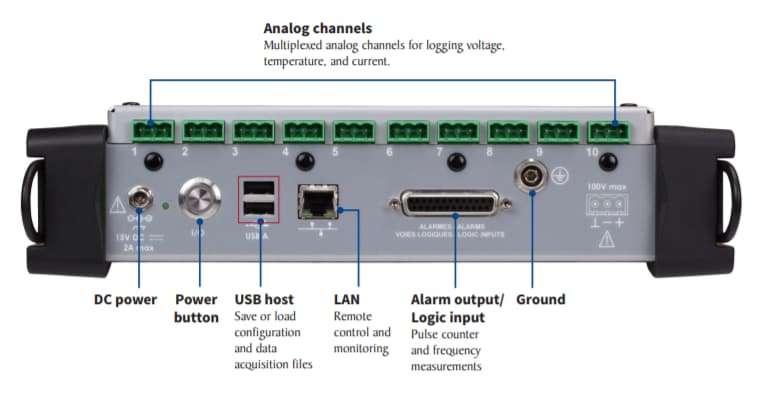

10 built-in universal analog inputs
Extended battery life of up to 15 hours
Virtual networking computing (VNC) capability for replicating the instrument’s front-panel interface on PCs
4 timing logic input channels for pulse count, frequency, and PWM measurements
Versatile temperature measurements supporting thermocouples and Pt100 / Pt1000 temperature sensors
