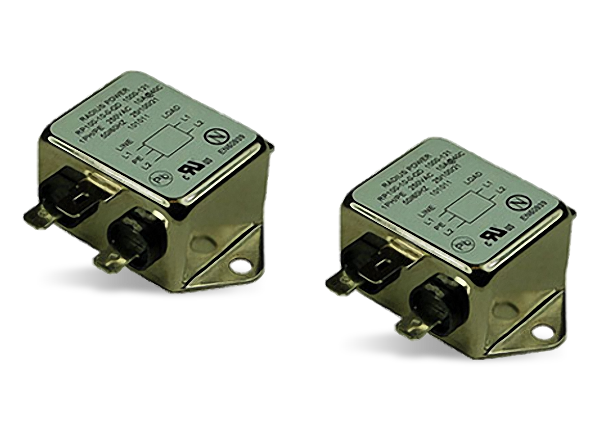

Astrodyne TDI RP100 Compact Medical-Grade Single Stage Filters
Astrodyne TDI RP100 Compact Medical-Grade Single Stage Filters are single-phase power line filters available in 3A, 6A, and 10A current ratings. The RP100 filters offer 120/250VAC (maximum) operating voltage and 50/60Hz operating frequency. These RP100 power line filters are ideal for medical and general-purpose applications.
Features
- Single phase power line filters
- Medical grade filters to 10A chassis mount filter
- RoHS compliant
Specifications
- 50/60Hz operating frequency
- 2700VDC Hipot rating (L-G)
- DC to 400Hz usable frequency
- 250V +10% maximum operating voltage
- -25°C to +40°C ambient temperature range
- 3A to 10A current rating range
- 0 to 1.8mA leakage current range
- 0 to 1nF capacitance range
Schematic Diagram
