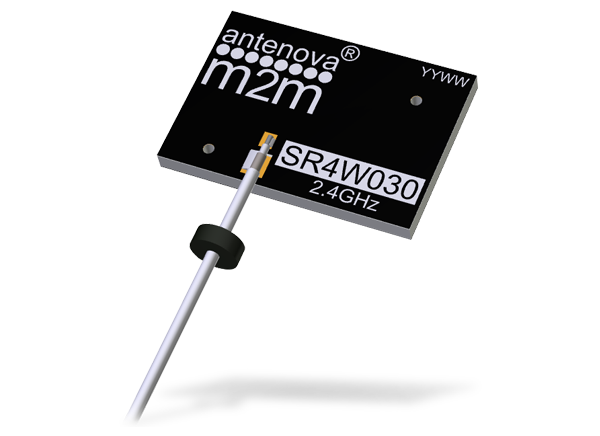

Antenova SR4W030 Zenon 2.4GHz Antennas

Antenova Zenon 2.4GHz Antennas with REFLECTOR® Technology are intended for use with all Wi-Fi, BLUETOOTH®, ZigBee, and ISM applications. A rigid antenna with a 1.13mm diameter cable enables direct connection to the host device (plastic, metal, or PCB). The antenna can be placed against any material and will not detune. The Zenon antennas feature simple integration with plug-and-play simplicity. The antenna covers a frequency range of 2.4GHz to 2.5 GHz.

Features

REFLECTOR^® Technology
Antenna for 2.4GHz applications
BLUETOOTH®, Wi-Fi, ZigBee, and ISM
Maintains high performance within the device, DFI (Designed For Integration)
ø1.13mm RF cable with IPEX MHF connector

Self-adhesive mounted
Quick integration minimizes the design cycle
High performance
Available in 2 standard cable lengths (100mm and 150mm)

Applications

Smart lighting
Portable devices
Set-top boxes

Network devices
Wearable devices
MIMO systems

Specifications

2.4GHz to 2.5GHz frequency range
Linear polarization
-40°C to +85°C operating temperature range
50Ω impedance with matching

FR4 self-adhesive (3M 468MP) antenna assembly type
23.0mm x 16.0mm x 1.6mm in dimension
MHF IPEX connection

Antenova Reflector Evaluation Kit

Antenova Reflector Evaluation Kit contains antenna samples and an evaluation PCB with three sections that can demonstrate the various placement options (metal [RF ground], free space, metal [floating]).
