Analog Devices Inc. EV1HMC890A Eval Board for HMC890 Band Pass Filter

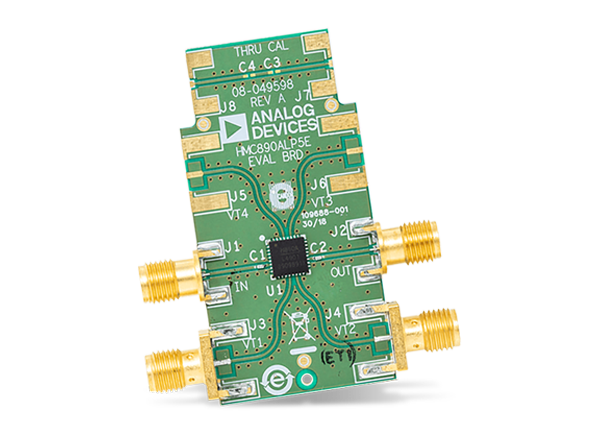

Analog Devices Inc. EV1HMC890A Eval Board for HMC890 Band Pass Filter is designed to evaluate HMC890 tunable band-pass filters. The primary side of the evaluation board is routed with RF traces and the remaining ground plane layers provide a solid ground for RF transmission lines. This evaluation board is built with Rogers 4350 dielectric material on the top that offers low loss performance. The prepreg material in the middle that sticks core layers and the Isola 370HR core layer is used to achieve required board finish thickness. The EV1HMC890A evaluation board is mainly used in the applications that use Radio Frequency (RF) circuit design technique.
