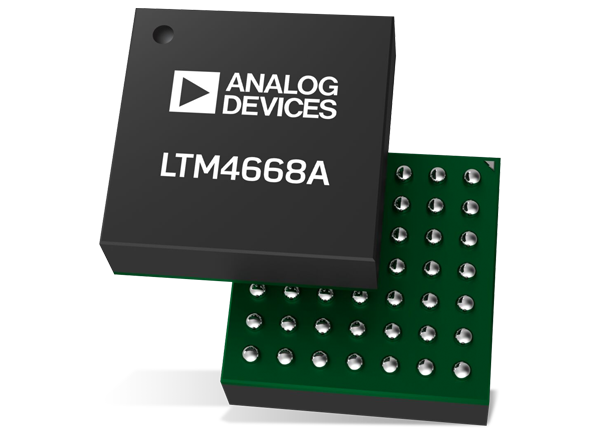

Analog Devices Inc. LTM4668A & LTM4668 Quad DC/DC µModule® Regulators
Analog Devices LTM4668A and LTM4668 Quad DC/DC Step-Down µModule® Regulators include outputs that can be paralleled in an array for up to 4.8A capability. Included in the package are switching controllers, power FETs, inductors, and support components. Operating over an input voltage range of 2.7V to 17V, the LTM4668A supports an output voltage range of 0.6V to 5.5V. Only bulk input and output capacitors are needed. The device supports frequency synchronization, PolyPhase operation, selectable Burst Mode operation, 100% duty cycle, and low IQ operation. The high switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. Fault protection features include overvoltage, overcurrent, and overtemperature protection.
Fault protection features include overvoltage, overcurrent, and overtemperature protection. The power module is offered in a space-saving and thermally enhanced 6.25mm × 6.25mm × 2.1mm BGA package. The LTM4668A is available with SnPb (BGA) or RoHS compliant terminal finish.
Features
- Quad Output Step-Down µModule Regulator with 1.2A per Output Channel
- Wide Input Voltage Range: 2.7V to 17V
- 0.6V to 5.5V Output Voltage
- 1.2A DC, Parallelable, Output Current Each Channel
- ±1.5% Total Output Voltage Regulation
- 100% Duty Cycle Operation
- Current Mode Control, Fast Transient Response
- External Frequency Synchronization
- Selectable Burst Mode® Operation
- Power Good Indicator
- Over Voltage, Current and Temperature Protection
- 6.25mm x 6.25mm x 2.1mm BGA Package
- Pin Compatible with LTM4668 (0.6V to 1.8V Output, 1MHz)
Applications
- Telecom, Networking, and Industrial Equipment
- Multi-Rail Point of Load Regulation
- FPGAs, DSPs and ASICs Application
Evaluation Boards
Analog Devices Inc. Placa de demostración DC2785A-A para LTM4668
Tiene un rango de voltaje de entrada en funcionamiento de 2.7 V a 17 V y puede proporcionar una corriente de salida de hasta 1.5 A.
Analog Devices Inc. DC2785A-B Demo Board for LTM4668A Regulators
Features 2.7V to 17V input voltage range, up to 1.2A output current, and 89.2% high efficiency.

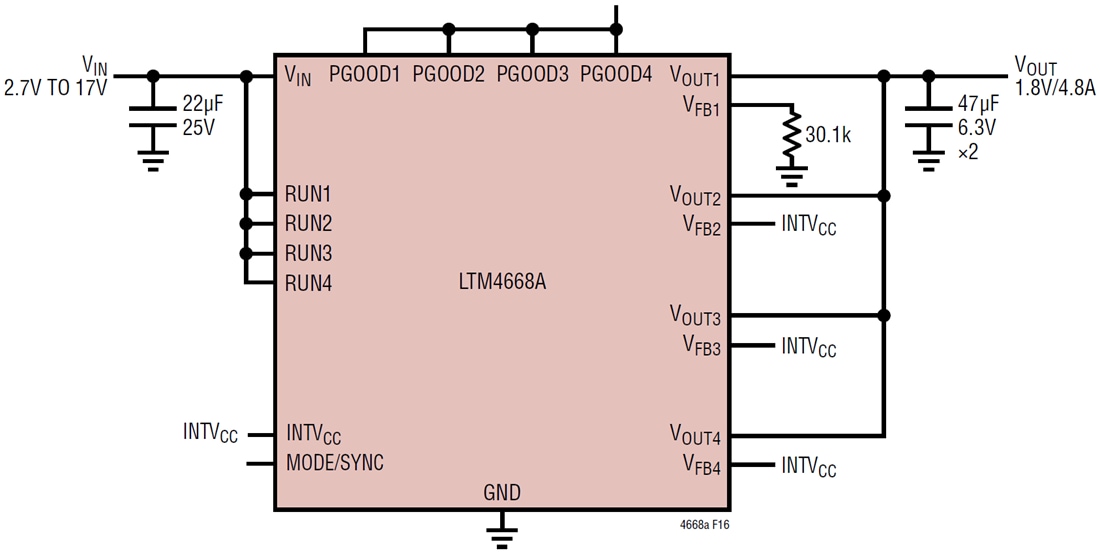

Typical Application
