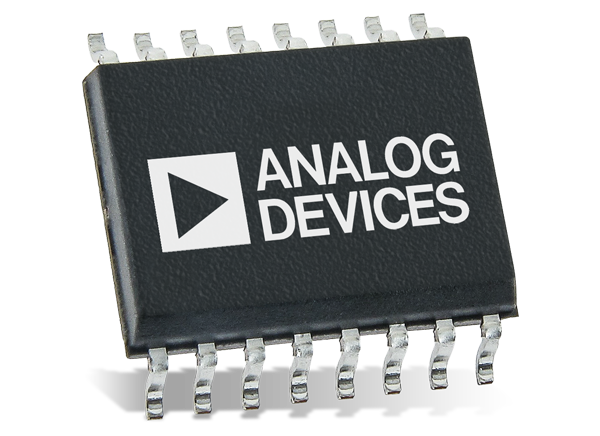

Analog Devices Inc. LTC2378 Low Power SAR ADCs

Analog Devices Inc. LTC2378 Low Power SAR ADCs are low-noise, low-power, high-speed 16-, 18-, and 20-bit successive approximation register (SAR) ADCs. The devices operate from a 2.5V supply with a ±VREF fully differential input range with VREF ranging from 2.5V to 5.1V. Analog Devices LTC2378 devices have a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V, and 5V logic while also featuring a daisy-chain mode.


  • 1Msps Throughput Rate
  • Guaranteed 16-Bit, 18-Bit, 20-Bit No Missing Codes
  • 13.5mW low power at 1Msps, 13.5µW at 1ksps
  • Digital gain compression (DGC)
  • Guaranteed operation to +125°C
  • 2.5V supply
  • Fully differential input range ±VREF
  • 2.5V to 5.1V VREF input range
  • No pipeline delay, no cycle latency
  • 1.8V to 5V I/O voltages
  • SPI-compatible Serial I/O with daisy-chain mode
  • Internal conversion clock
  • 16-Lead MSOP and 4×3mm DFN packages


  • Medical imaging
  • High-speed data acquisition
  • Portable or compact instrumentation
  • Industrial process control
  • Low-power battery-operated instrumentation
  • ATE

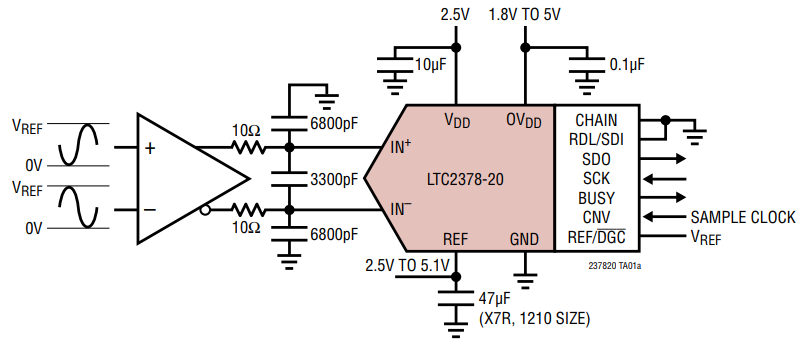

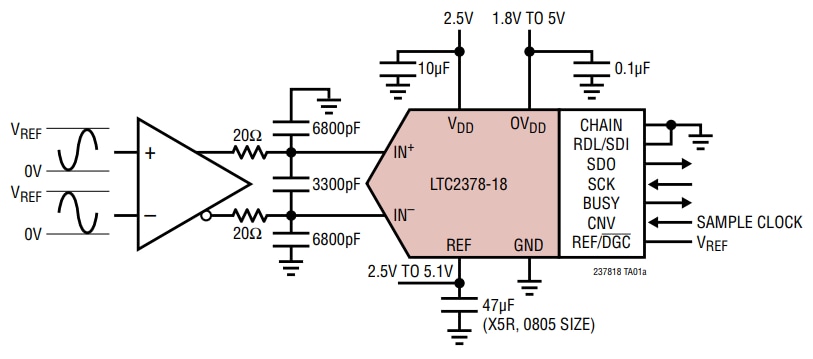

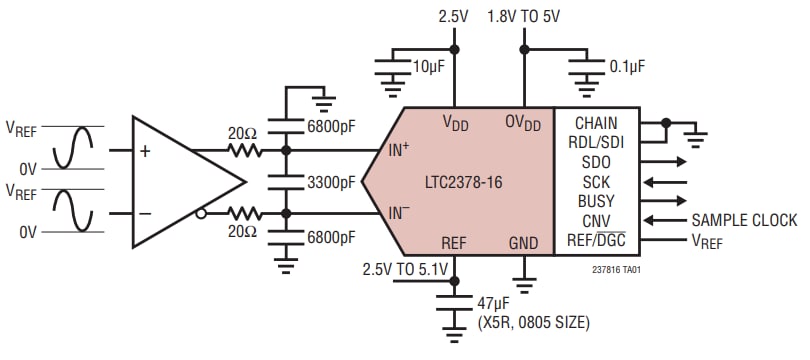

Typical Applications

Publicado: 2018-10-02 | Actualizado: 2023-02-28
