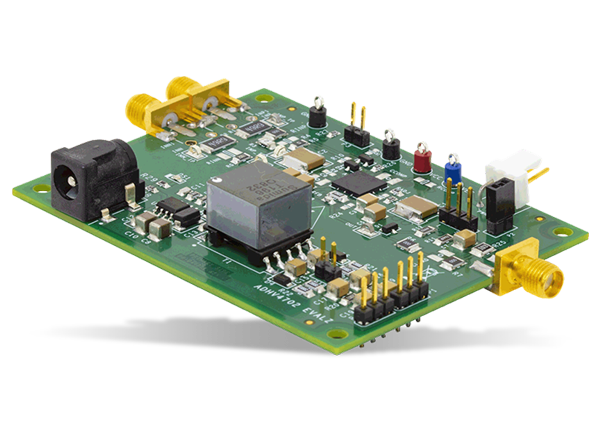

Analog Devices Inc. EVAL-HV4702-1CPZ Evaluation Board
Analog Devices EVAL-HV4702-1CPZ Evaluation Board is configured to evaluate the operation of the ADHV4702-1 Amplifier. The ADHV4702-1 is offered in a 7mm × 7mm, 12-lead lead frame chip scale package (LFCSP) with an exposed pad at the bottom.
The bottom side of the EVAL-HV4702-1CPZ board offers a large exposed copper area for attaching a heat sink providing additional thermal management. The EVAL-HV4702-1CPZ is a 6-layer board designed to minimize leakage currents using the guard ring feature. The device accepts Subminiature Version A (SMA) and Subminiature Version B (SMB) edge mounted connectors on the inputs for easy connection to test equipment or other circuitry. An additional safety feature on the EVAL-HV4702-1CPZ Board is acrylic plastic guards covered on the top and bottom, reducing the risk of inadvertent contact with high voltage.
Features
- Full-featured evaluation board for the ADHV4702-1
- Single-supply or dual-supply operation
- On-board power management circuit generates high voltage
- Edge-mounted SMA and SMB connector provisions
- Easy connection to test equipment and other circuits
- Robust thermal management
Board Layout (Front)
Board Layout (Back)
Side View
Associated Products
Analog Devices Inc. ADHV4702-1 24V to 220V Precision Amplifiers
Offers a high voltage of 220V, in a unity-gain-stable precision package.
