Analog Devices Inc. ADRF5047-EVALZ Evaluation Board

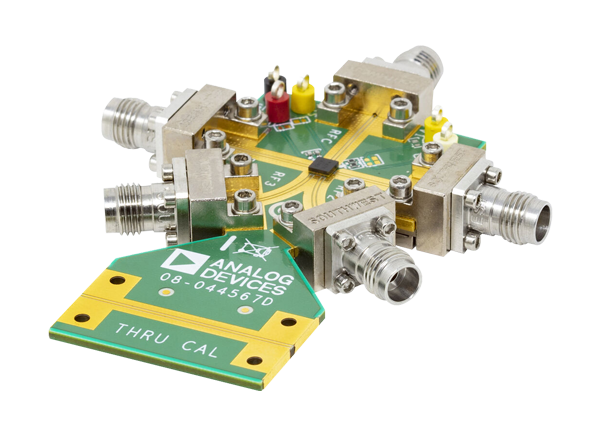

Analog Devices Inc. ADRF5047-EVALZ Evaluation Board is a demonstration and evaluation platform based on the ADRF5047 Silicon SP4T Reflective Switch. The EVAL-ADRF5047 is fully populated using 4-layer RO4003 PCB material and designed for optimal high frequency performance. The total board thickness is 62mm, which allows 2.4mm RF launchers to be connected at the board edges. The EVAL-ADRF5047 features RF connectors for RFC to RF1, RF2, RF3, or RF4.
Features
- Demonstration and evaluation platform based on the ADRF5047 Silicon SP4T Reflective Switch
- Fully populated using 4-layer RO4003 PCB material
- 62mm board thickness, which allows 2.4mm RF launchers to be connected at the board edges
- RF connectors for RFC to RF1, RF2, RF3, or RF4
Related Product
Analog Devices Inc. ADRF5047 Si SP4T Reflective Switch (9kHz-44GHz)
Broadband switch operating from 9kHz to 44GHz, with low insertion loss and high isolation.

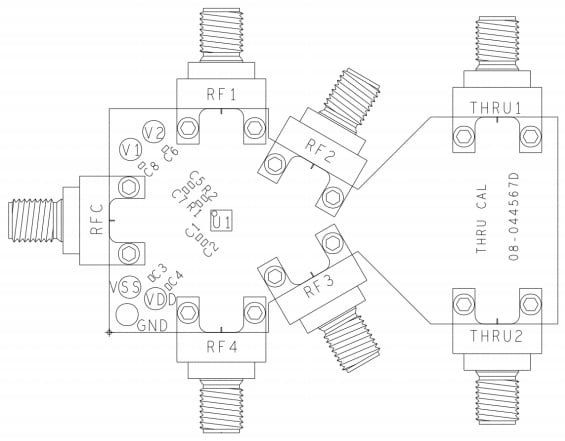

Assembly Drawing
