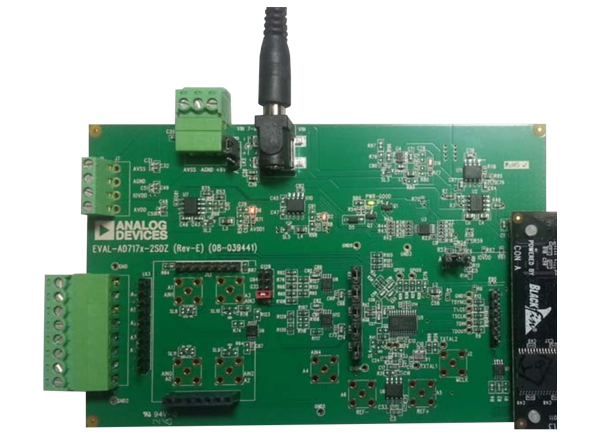

Analog Devices Inc. EVAL-AD7177-2SDZ Evaluation Board
Analog Devices EVAL-AD7177-2SDZ Evaluation Board helps to evaluate the features of the AD7177-2 32-Bit, 10kSPS, Sigma-Delta ADC. This evaluation kit features the AD7177-2 32-bit, analog-to-digital converter (ADC) with integrated rail-to rail-analog input buffers, on-board power supply regulation, and an external amplifier section. A 7V to 9V ac-to-dc adapter is regulated to 5V and 3.3V, which supply the AD7177-2 and support components.
The EVAL-AD7177-2SDZ evaluation board connects to the USB port of a PC via the EVAL-SDP-CB1Z SDP controller board.
Features
- Full-featured evaluation board for the AD7177-2
- PC control in conjunction with the Analog Devices Inc. EVAL-SDP-CB1Z System Demonstration Platform (SDP)
- PC software for control and data analysis (time domain)
- Standalone capability
Required Equipment
- DC signal source
- PC running Windows® XP to Windows 7
Kit Contents
- EVAL-AD7177-2SDZ evaluation board
- Evaluation software CD
- 7V to 9V AC-to-DC adapter
- Plastic screw washer set
View AD7177-2 ADCs
Analog Devices Inc. AD7177-2 32-Bit Sigma-Delta ADCs
Low noise, fast settling, multiplexed, and 2-/4-channel Σ-Δ ADCs for low bandwidth inputs.
Evaluation Board
Analog Devices Inc. EVAL-AD7177-2SDZ Evaluation Board
Helps to evaluate the features of the AD7177-2 32-Bit, 10kSPS, and Sigma-Delta ADC.
Publicado: 2015-08-18
| Actualizado: 2022-03-11
