Analog Devices Inc. ADuM4122 Isolated Gate Drivers

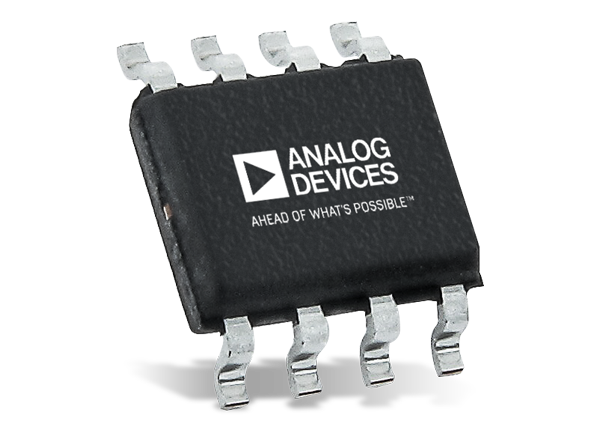

Analog Devices ADuM4122 Isolated Gate Drivers are single-device, dual-output drivers with iCoupler® technology to provide precision isolation. The ADuM4122 provides 5kV_rms isolation in a wide-body, 8-lead SOIC package. These isolation components combine a high speed complementary metal-oxide semiconductor (CMOS) and monolithic transformer technology. This provides performance characteristics superior to alternatives (like a combination of pulse transformers and gate drivers).

Features

2A output current per output pin (<3Ω R_{DSON_X})
3A peak short-circuit current
3.3V to 6.5V, V_DD1
4.5V to 35V, V_DD2
Positive going threshold, UVLO at 3.3V V_DD1
Multiple positive going thresholds, UVLO options on V_DD2
- Grade A: 4.4V (typical) positive going threshold, UVLO
- Grade B: 7.3V (typical) positive going threshold, UVLO
- Grade C: 11.3V (typical) positive going threshold, UVLO
Precise timing characteristics
48ns maximum propagation delay for falling edge
CMOS input logic levels

High common-mode transient immunity: >150kV/µs
High junction temperature operation: 125°C
Default low output
Selectable slew rate control
Safety and regulatory approvals (pending)
- UL recognition per UL 1577
  - 5kV_rms for 1 minute
- CSA Component Acceptance Notice 5A
- VDE certificate of conformity (pending)
  - DIN V VDE V 0884-10
  - V_IORM = 849V peak
Wide-body, 8-lead SOIC_IC
