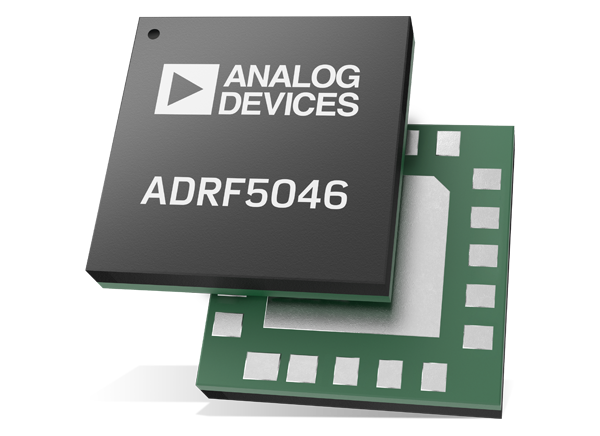

Analog Devices Inc. ADRF5046 Si SP4T Reflective Switch (0.1-44GHz)
Analog Devices Inc. ADRF5046 Si SP4T Reflective Switch (0.1-44GHz) is designed to operates from 100MHz to 44GHz with an insertion loss lower than 3.0dB isolation higher than 31dB. The ADRF5046 has a RF (Radio Frequency) input power handling capability of 27dBm for both the through path and hot switching. Developed using a silicon process, the ADRF5046 provides complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible controls. This broadband switch draws a low current of 3μA on the positive supply of +3.3V, and −110μA on the negative supply of −3.3V.
The ADRF5046 is offered in a compact, 20-terminal, RoHS compliant Land Grid Array (LGA) package, with an operating temperature range of -40°C to +105°C.
Features
- Ultrawideband frequency range: 100MHz to 44GHz
- Reflective design
- Supply Voltage
- Positive: -0.3V to +3.6V
- Negative -3.6V to +0.3V
- Low insertion loss
- 1.5 dB at 18GHz
- 2.5 dB at 40GHz
- 3.0 dB at 44GHz
- High isolation
- 46 dB at 18GHz
- 33 dB at 40GHz
- 31 dB at 44GHz
- High input linearity
- P0.1dB: 27.5dBm typical
- IP3: 50dBm typical
- High RF input power handling
- Through path: 27dBm
- Hot switching: 27dBm
- No low frequency spurious
- 0.1 dB RF settling time: 50ns
- Operating temperature range: -40°C to +105°C
- Junction temperature (TJ): +135°C
- Package Type: LGA-20
- Package dimensions: 3mm × 3mm
- RoHS compliant
Applications
- Industrial Scanners
- Test and instrumentation
- Cellular Infrastructure – mmWave 5G
- Military radios, radars, electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
Related Products
Analog Devices Inc. RF Switches
High bandwidth CMOS switches and multiplexers that reduce PCB board space.
Analog Devices Inc. ADRF5044 SP4T Switches
100MHz to 30GHz general-purpose silicon SP4T switches.
Development Tools
Analog Devices Inc. EVAL-ADRF5046 Evaluation Board
Demonstration and evaluation platform based on the ADRF5046 Silicon SP4T Reflective Switch.
Functional Block Diagram
Package Outline
