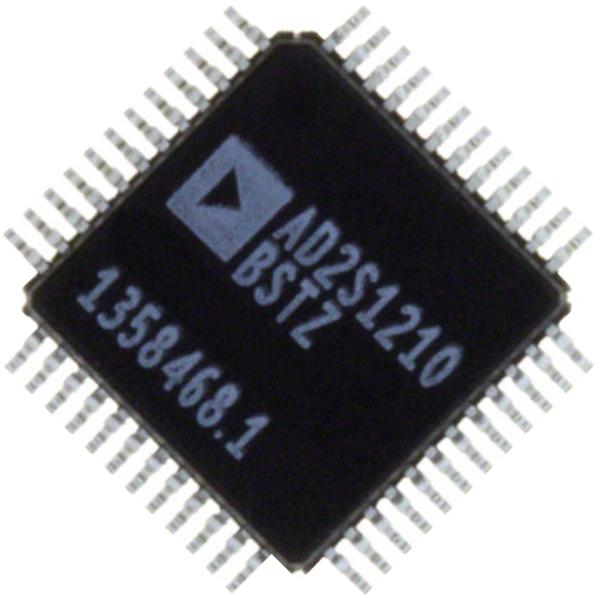

Analog Devices Inc. AD2S1210 10-Bit to 16-Bit R/D Converters

Analog Devices AD2S1210 10-Bit to 16-Bit R/D Converters are complete monolithic 10-bit to 16-bit resolution tracking resolver-to-digital converters that integrate an on-board programmable sinusoidal oscillator for sine wave excitation for resolvers. AD2S1210 accepts 3.15V p-p ± 27% input signals in the range of 2kHz to 20kHz on the sine and cosine inputs. A Type II servo loop tracks the inputs and converts the input sine and cosine information into a digital representation of the input angle and velocity. AD2S1210 provides a maximum tracking rate is 3125rps and ±2.5 arc minutes of accuracy.

With an operating range from -40°C to +125°C, AD2S1210 10-Bit to 16-Bit R/D Converters are ideal for dc and ac servo motor control, encoder emulation, electric power steering, electric vehicles, integrated starter generators/alternators, and automotive motion sensing & control.

Features

Complete monolithic resolver-to-digital converter
3125rps maximum tracking rate (10-bit resolution)
±2.5 arc minutes of accuracy
10-bit, 12-bit, 14-bit, or 16-bit resolution, user-definable
Parallel and serial 10-bit to 16-bit data ports
Absolute position and velocity outputs
System fault detection

Programmable fault detection thresholds
Differential inputs
Incremental encoder emulation
Programmable sinusoidal oscillator on-board
Compatible with DSP and SPI interface standards
5V supply with 2.3V to 5V logic interface
-40°C to +125°C temperature rating

Applications

DC and ac servo motor control
Encoder emulation
Electric power steering

Electric vehicles
Integrated starter generators/alternators
Automotive motion sensing and control

Block Diagram

EVAL-AD2S1210SDZ Evaluation Board

Analog Devices EVAL-AD2S1210SDZ is a full featured evaluation board designed to allow the user to easily evaluate all the features of the AD2S1210 resolver-to-digital converter (RDC).

View EVAL-AD2S1210SDZ Evaluation Board

EVAL-AD2S1210SDZ Evaluation Board User Guide
