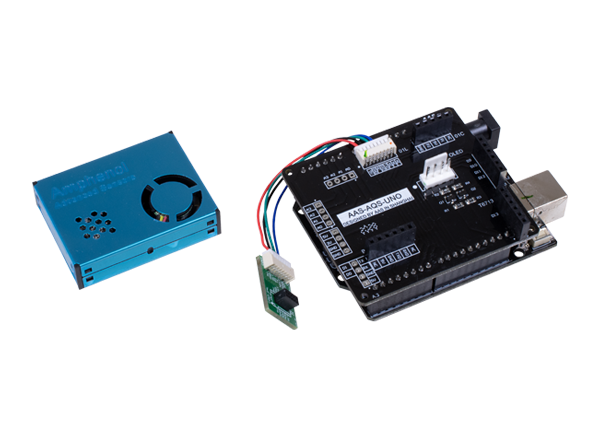

Amphenol Advanced Sensors Telaire AAS-LDS-UNO Air Quality Evaluation Board is used to evaluate Telaire Air Quality Sensors, including SM-UART-04L PM2.5 Laser Dust Sensor, T9602 Temperature and Humidity Sensors, T6713 Carbon Dioxide (CO2) Sensor, and other sensors from the Amphenol family. The OLED display screen can be supported at the same time. This board is designed to speed up the evaluation and development of relevant sensors. The serial output can be configured to send sensor data to a PC over a USB connection for recording and analysis in third-party software. Ideal markets for Amphenol Advanced Sensors Telaire AAS-LDS-UNO Air Quality Evaluation Board are transportation, industrial, medical, and pharmaceutical.
Arduino development platform, open source code
Reserved SM-UART-04L PM2.5 laser dust sensor
Reserved T6713 carbon dioxide (CO2) sensor
Reserved T9602 temperature and humidity sensor interface
Supports the 128 x 64 OLED screen
External USB power supply
Sample code available on Github
Rapid development of air quality sensor acquisition systems
Arduino-compatible board with preloaded software
Sensor evaluation shield
USB data cable
OLED display screen
SM-UART-04L laser dust sensor
