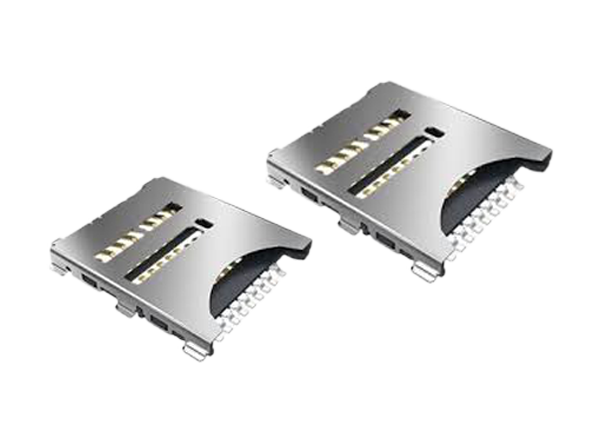

Amphenol Communications Solutions microSD Express Connector
Amphenol Communications Solutions microSD Express Connector offers card sockets for both microSD Express and Micro SD cards (UHS-I). The 17-pin microSD Express Connector is capable of achieving high speeds up to 985MB/s and meeting PCIe® 3.0 requirements. The connector enables the microSD Express platform to reach its full potential by making the microSD Express card able to serve as a removable Solid State Drive (SSD). This platform is ideal for high-resolution content, speed-hungry mobile computing, and IoT devices.
Features
- 17-pin connector design supports next-generation performance
- Dedicated pin for card detect function
- Data transfer speed of up to 8GT/s
- High durability with up to 5000 mating cycles
- Backward compatible with the legacy Micro SD card (UHS-I)
- Robust mating mechanism ensures a reliable connection
- Lead-free, halogen-free, and RoHS compliant
Applications
- Mobile phone
- Tablets
- Virtual reality cameras
- Augmented reality cameras
- Unmanned aerial vehicle (UAV)
- IoT devices
- Mobile computing devices
- Surveillance cameras
Specifications
- Materials
- High-temperature thermoplastic housing, black, UL94V-0
- Corson alloy contact
- Stainless steel shell
- Electrical
- 100mΩ maximum contact resistance
- 500VAC maximum withstanding voltage (1 minute)
- 1000mΩ minimum insulation resistance
- 0.5A AC/DC maximum current rating
- 100Vrms minimum voltage rating
- Mechanical
- 5000 mating cycle durability
- 30gf/pin normal force (minimum)
- Environmental
- -25°C to +85°C operating temperature range
- 95% maximum relative humidity
- -40°C to +85°C storage temperature range
