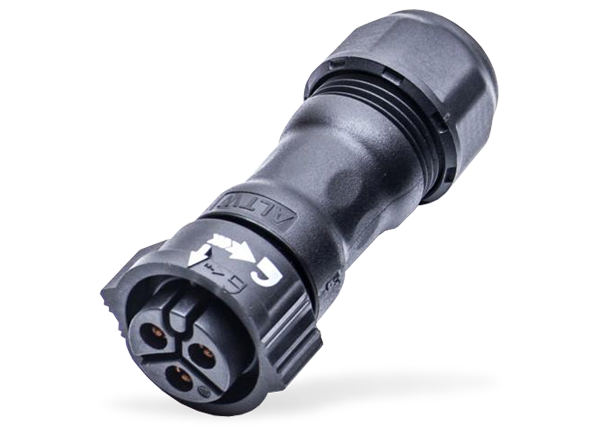

Amphenol LTW X-Lok IP68 Field Installable Connectors

Amphenol LTW X-Lok IP68 Field Installable (FI) Connectors provide a serviceable crimp termination for on-site installation needs. Amphenol LTW X-Lok FI features a push-lock mechanism for blind mating and quick, easy installation. The X-Lok FI Connectors meet high industrial standards by using UL 94V-0 and UL-f1 rated thermoplastic materials for flammability and UV exposure protection. The series is also compliant with UL1977 to offer users safe and stable performance in data and power transmission.

Features

  • UL 94V-0 and UL-f1 rated thermoplastic materials provides high performance under harsh environmental conditions
  • Contact with locking lances and a push-lock mechanism features audible feedback for terminal position assurance and connector reliability
  • Hexagonal nut provides an easy-grip design and high tensile strength
  • Seal provides an anti-drop design with high waterproof capability (IP68), available with color identification for different seals

Applications

  • Marine electronics
  • LED lighting
  • Renewable energy
  • IP Closed Circuit TV (CCTV) and security
  • Industrial/factory automation
  • Outdoor broadband wireless access
  • Aerospace
  • Automotive

Specifications

  • Up to 20A current rating
  • 300VAC/DC voltage rating
  • 1000 cycle durability
  • IP68 (1m/24 hours) waterproof rating
  • -40°C to +105°C operating temperature range
  • ≤10mΩ maximum contact resistance
  • 1600VAC dielectric withstand voltage
  • ≥100MΩ minimum insulation resistance at 500VDC
  • 4.5kgf to 7.0kgf maximum mating force
  • 2.5kgf to 4.0kgf maximum unmating force
  • Black, UL 94V-0 thermoplastic housing
  • Gold-plated copper alloy terminals
  • UL 94V-0 rubber seal and O-ring

Expanded View

Chart - Amphenol LTW X-Lok IP68 Field Installable Connectors
