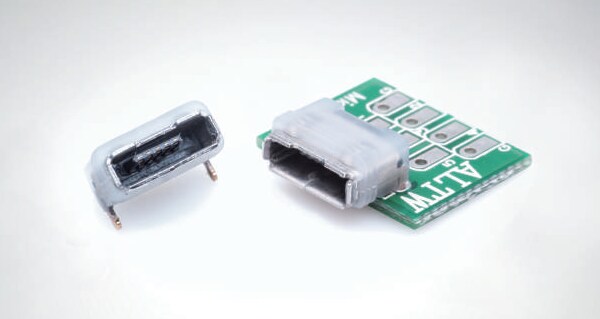

Amphenol LTW Waterproof Micro-USB 2.0 SWIFT Connectors
Amphenol LTW Waterproof Micro-USB 2.0 SWIFT Connectors are IP67 / IP68 stand-alone connectors that blend with wearable devices. The series offers a 1A current rating for contacts 2, 3, and 4 and a 1.8A current rating for contacts 1 and 5 and, at the same time, 0.5A for contacts 2, 3, and 4. Amphenol LTW Waterproof Micro-USB 2.0 SWIFT Connectors operate in a temperature range of -30°C to +85°C. Typical applications include digital pressure monitoring, night vision, tablet PCs, digital cameras, and more.
Features
- AB type
- IP67 or IP68 unmated (stand-alone) waterproof rating
- -30°C to +85°C operating temperature range
- 10,000 mating cycles
- 5.52mm (L) x 8.3mm (W) x 4.83mm (H) SMD package
- Current rating
- 1A for contacts 2, 3, and 4
- 1.8A for contacts 1 and 5 and, at the same time, 0.5A for contacts 2, 3, and 4
- RoHS certified
Applications
- Digital pressure monitoring
- Night vision
- Tablet PCs
- Digital cameras
Part Selector Guide
Related Connectors
Amphenol LTW Waterproof USB Connectors
USB connector family that supports micro-USB and USB 2.0/3.0/3.1, with IP67/68 waterproof ratings.
