Abracon ClearClock™ Ultra-Low Jitter Oscillators
Abracon ClearClock™ Ultra-Low Jitter Oscillators offer a 3rd overtone solution with a frequency range of 100MHz to 200MHz, 220MHz, or 212.5MHz. These lead-free crystals feature differential output options of LVPECL, LVDS, and HCSL. The AK2 oscillators offer 120fs typical RMS jitter and 2.5mm x 2mm x 1mm dimensions, and the AK3 oscillators provide 83fs typical RMS jitter and 3.2mm x 2.5mm x 1mm dimensions. The AK5 oscillators have 75fs typical RMS jitter and 5mm x 3.2mm x 1.3mm dimensions, while the AK7 oscillators feature 75fs typical RMS jitter and measure 7mm x 5mm x 1.8mm. Abracon Ultra-Low Jitter Oscillators are ideal for networking and communications, data centers, test and measurement, gigabit Ethernet, Fibre Channel, and more.
Features
- Common
- 3rd overtone solution
- ±20ppm and ±25ppm stability (-40°C to +85°C) options available (dependent on frequency)
- LVPECL, LVDS, and HCSL differential output options
- Output enable standard or optional
- Lead free
- RoHS/RoHS II compliant
- AK2
- 2.5mm x 2mm x 1mm dimensions
- 120fs typical RMS jitter at 156.25MHz, spurs included
- 100MHz to 200MHz frequency range
- AK3
- 3.2mm x 2.5mm x 1mm dimensions
- 83fs typical RMS jitter (LVDS at 156.25MHz), spurs included
- 100MHz to 212.5MHz frequency range
- AK5
- 5mm x 3.2mm x 1.3mm dimensions
- 75fs typical RMS jitter (F= 156.25MHz LVPECL), spurs included
- 100MHz to 200MHz frequency range

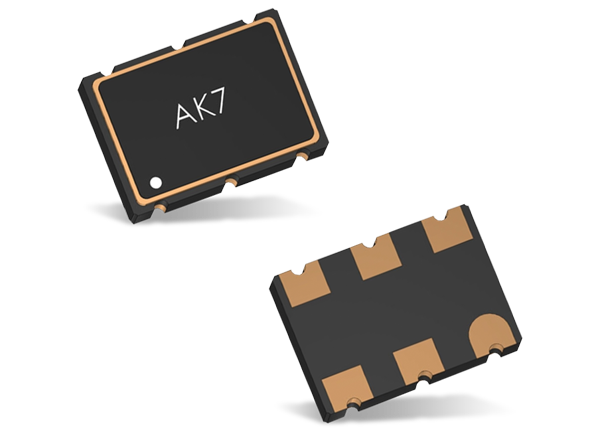

- AK7
- 7mm x 5mm x 1.8mm dimensions
- 75fs typical RMS jitter (100fs max., F=156.25MHz LVPECL), spurs included
- 100MHz to 220MHz frequency range
Applications
- Networking and communications
- Data centers
- Test and measurement
- Gigabit Ethernet
- Fibre Channel
- RF systems, base stations (BTS)
- PCI Express
- SONET/SDH
