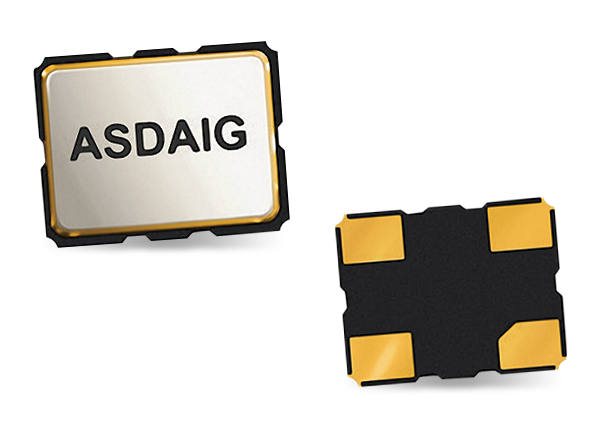

Abracon ASDAIG HCMOS SMD Crystal Oscillators
Abracon ASDAIG HCMOS SMD Crystal Oscillators are automotive and industrial grade oscillators that are AEC-Q200 qualified. These oscillators operate at a frequency range from 20MHz to 48MHz and overall frequency stability range from -100ppm to +100ppm. The ASDAIG crystal oscillators come in seam sealed ceramic package that assures high precision and reliability. These high-density CMOS SMD oscillators are available in low profile and an ultra-miniature size with 2.5mm x 2mm x 0.95mm dimensions. The ASDAIG crystal oscillators have an extended operating temperature range of -40°C to +125°C and are suitable for ROHS reflow profile. These HCMOS SMD crystal oscillators are ideal for automotive and industrial electronics.
Features
- Ultra-miniature size and low profile
- 20MHz to 48MHz frequency range
- -100ppm to +100ppm overall frequency stability
- 2.5mm x 2mm x 0.95mm dimensions
- Seam-sealed ceramic package assures high precision and reliability
- -40°C to +125°C operating temperature range
- -55°C to +125°C storage temperature range
- Suitable for RoHS reflow profile
- AEC-Q200 qualified

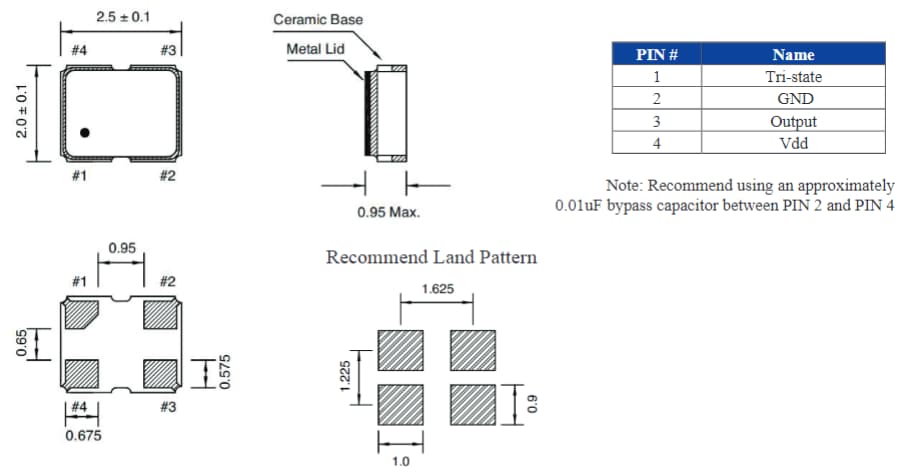

ASDAIG Outline Dimensions
ASDAIG Reflow Profile
Publicado: 2019-01-16
| Actualizado: 2023-03-15
