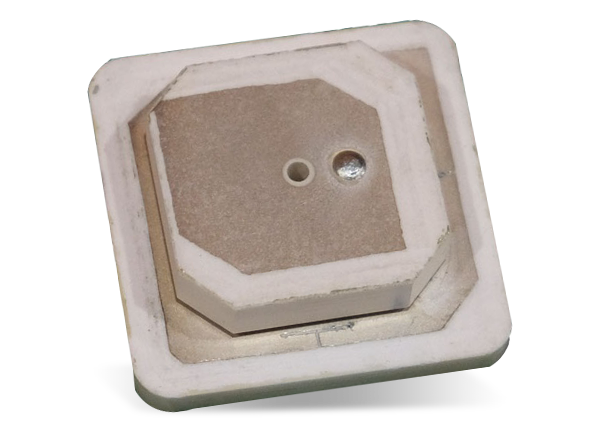

Abracon APAKM4012-C2G3D GNSS & SDARS Stacked Patch Antenna
Abracon APAKM4012-C2G3D Global Navigation Satellite System (GNSS) and Satellite Digital Audio Radio Service (SDARS) Patch Antenna is a multiband antenna that supports GPS/GLONASS/Beidou/Galileo and SDARS. This staked ceramic patch antenna offers RHCP polarization for GNSS and LHCP polarization for SDARS. The Abracon APAKM4012-C2G3D GNSS and SDARS stacked patch antenna operates at -40°C to +85°C temperature range. Typical applications include GNSS, SDARS, satellite radio, Internet of Things (IoT), remote technology monitoring, logistics, surveying, and mapping systems.
Features
- Stacked ceramic patch antenna
- Multiband GNSS GPS/GLONASS/Beidou/Galileo and SDARS
- Polarization:
- RHCP for GNSS
- LHCP for SDARS
Specifications
- Operating Frequency:
- 1561MHz, 1575MHz, 1589MHz, and 1602MHz frequency for GNSS
- 2320MHz, 2332MHz, and 2345MHz frequency for SDARS
- -40°C to +85°C operating temperature range
- 40mm x 40mm x 12.2mm dimensions
Applications
- GPS/GLONASS/Galileo/Beidou/SDARS
- IoT
- Satellite radio
- Remote technology monitoring
- Surveying and mapping systems
- Logistics
DImensions (mm)
Publicado: 2019-07-17
| Actualizado: 2023-03-16
