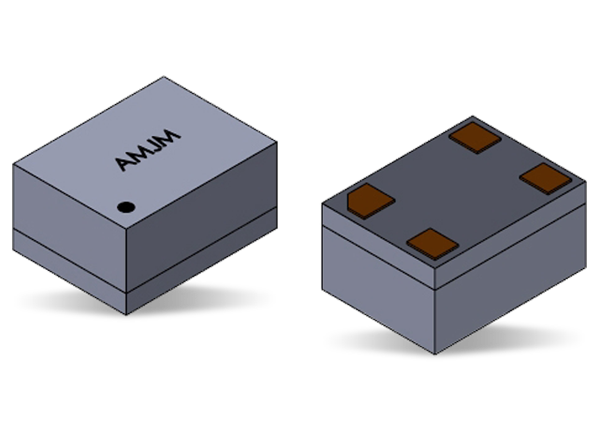

Abracon AMJM Power Optimized MEMS Oscillators

Abracon AMJM Power Optimized MEMS Oscillators offer a 1MHz to 100MHz output frequency range and 12µA power standby. These power-optimized oscillators feature an output enable function, low 0.84mm profile, low operating current, and a wide temperature range from -40°C to +85°C. The AMJM oscillators consume low power during operation. These MEMS oscillators feature a compact footprint and are available in low-profile packages. Typical applications include the Internet of Things (IoT), audio, video, drone, and robotics.

Features

Compact footprint and low profile
Output enable or ultra-low power standby
Low power consumption

Low operating current
Moisture Sensitivity Level (MSL) 1
Lead-free and RoHS/RoHS II compliant

Applications

Wearables
Internet of Things (IoT)
Industrial IoT

Audio and video
Drones
Robotics

Specifications

1MHz to 100MHZ output frequency range
1.71V to 3.63V power supply voltage range
3.0mA typical current consumption
12µA ultra-low power standby
±25ppm or ±50ppm all-inclusive frequency stability options
±5ppm first year aging at +25°C, ±1ppm per year after the first
45/55% duty cycle
300kΩ typical enable pull-up resistor
0.1ms to 100ms power supply ramp range

1.3ms maximum start-up time
1µs maximum output enable time
1.0ns to 2.2ns rise/fall time
9ps to 11ps maximum RMS period jitter
60ps to 70ps maximum cycle-to-cycle jitter
0.84mm profile
Temperature ranges
- -40°C to +85°C operating
- -55°C to +150°C storage
- +260°C typical soldering
