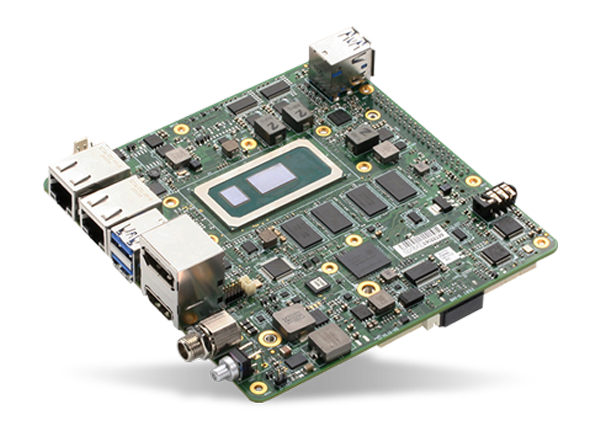

AAEON UP Xtreme Boards
AAEON UP Xtreme Boards are high-performance, compact, and expandable UP boards powered by the 8th generation Intel® Core™ i3/i5/i7 and Celeron CPU. These UP boards are designed to boost the AI on the edge solution. The boards offer a comprehensive set of features and I/O that allows reaching good performance. These boards come with a 12V to 60V input power, lockable power connector, and TSN networking chip, enabling the board to be expandable and industrial. AAEON UP Xtreme boards can expand up to 6x Intel Movidius™ Myriad X VPU and provide Wi-Fi®, BLUETOOTH®, LTE, and LoRA optional connectivity.
The UP Xtreme Edge Compute boards are also available with fully certified AI and IoT ready edge computing systems. These Edge compute boards are designed to run at -20°C to 60°C operating temperature range and accommodate 2x Myriad Myriad X via M.2280 interface with AI core XM2280.
Features
- Boosts the AI on edge solutions
- Delivers a comprehensive set of features and I/O
- High performance
Specifications
- Intel 8th generation Celeron-4305UE / Core™ i3-8145UE / Core™ i5-8365UE / Core™ i7-8665UE SoC
- Intel UHD Graphics 610 (Celeron) / Intel UHD Graphics 620 (Core i) graphics
- Onboard Dual Channel DDR4 memory with maximum 16GB system memory
- 64GB eMMC storage capacity
- 2 x RS-232/485/422, 1 x RS232 (TTL) serial port
- 2 x Gb Ethernet (full speed) RJ-45 Ethernet
